Case study

Structurally valid, physiologically impossible

We built a vendor-neutral interface that reads a completed pulmonary function study from a PFT vendor's SQL database, builds a conformant HL7 v2.5.1 ORU^R01, and transmits it over MLLP to a mock EHR listener. Then we fed it a study no lung could produce, and the interface refused to send it.

Standard: HL7 v2.5.1 ORU^R01 over MLLP
Terminology: LOINC and UCUM
Gate: Structure, terminology, plausibility
Work type: Standfast internal research

The problem

Pulmonary function labs run on vendor systems that keep results in their own databases. Getting a completed study into the EHR as discrete results rather than a PDF means an interface: SQL out, HL7 in. Most of those interfaces are built as data pipes. If the message parses, it ships.

But a PFT result is not just a message. FEV1 is the air a patient moves in the first second of an exhale; FVC is everything they move. FEV1 cannot exceed FVC, and no HL7 schema knows that. A pipe that only checks structure will deliver a physiologically impossible result to a chart with a clinician on the other end. The interface has to know what the standard cannot say.

The round trip

A completed study, seven results, read from the vendor database without write access. The builder renders it as an ORU^R01 with LOINC-coded observations and UCUM units. The gate checks structure, terminology, and plausibility, and the message goes out over MLLP framed the way the wire actually frames it. The listener acknowledges, and the ACK AA is correlated back to the message control ID it answers. Round trip, end to end, in 14 milliseconds.

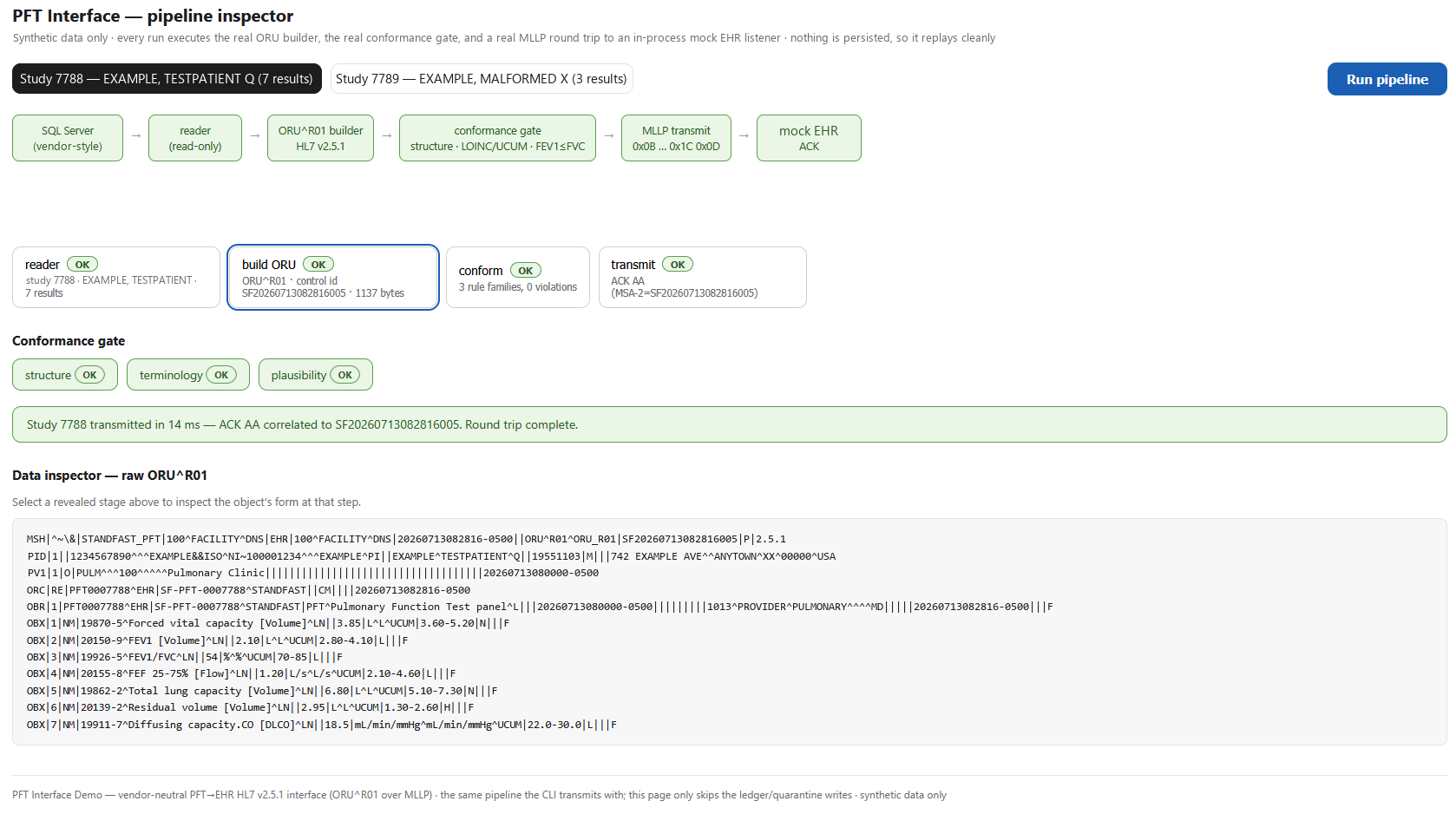

Pipeline inspector, valid study: a seven-result pulmonary function study is read from
the vendor SQL database, built into an HL7 v2.5.1 ORU^R01, passes all three conformance
gate checks, is transmitted over MLLP, and the mock EHR listener's ACK AA is correlated
back to the message control ID. The data inspector shows the raw ORU^R01 message with
LOINC-coded OBX segments.

The quarantine

The second study is the same pipeline fed a study that cannot exist. The message it produces is structurally valid HL7: every segment in order, every field well-formed. The gate rejects it twice over. One observation is missing its LOINC code, and FEV1 at 4.10 liters exceeds FVC at 3.20 liters, which no set of lungs can do. The message is held for review and never reaches the wire.

A generic HL7 validator accepts this message. That is the whole argument. This safeguard is the difference between a data pipe and a clinical-grade interface.

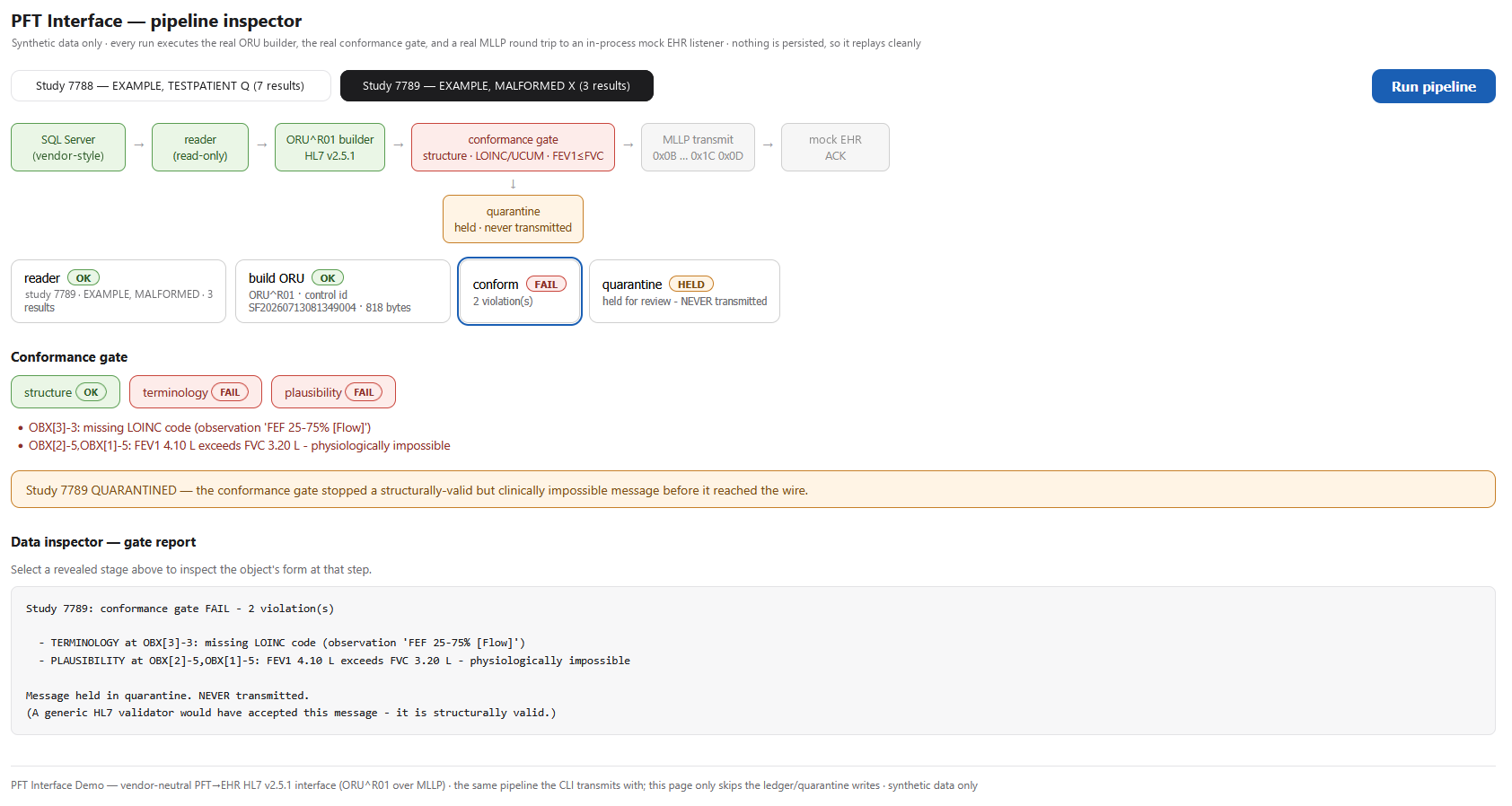

Pipeline inspector, clinically impossible study: the same pipeline builds a
structurally valid ORU^R01, but the conformance gate fails it on terminology and
plausibility: a missing LOINC code, and FEV1 of 4.10 liters exceeding FVC of 3.20 liters.
The message is quarantined, held for review, and never transmitted. The gate report notes
a generic HL7 validator would have accepted it.

Where the line is

This is a clean-room prototype on open standards: synthetic studies, a vendor-style database schema rather than a vendor's actual schema, and a mock listener standing in for the EHR. No real patient data is used, and nothing here required access to anyone's production system.

The pattern is the part that transfers. Read-only source access, a conformance gate that fails closed, terminology bound to LOINC and UCUM, and an acknowledgment correlated to every message it answers: these are the load-bearing pieces of any device-to-EHR interface, whichever vendor is on either end.

Is your results interface just a pipe?

If a structurally valid message can reach your EHR carrying a result no patient could produce, the gap is in the interface, not the standard. We can walk through what a conformance gate would look like in front of yours.
